Tiny gold particles can help harness energy from the Sun to break down pollution
Researchers have found a way to make gold nanoparticles with a uniform size and shape, opening up the possibility of finding more effective photocatalysts.
When organic pollutants such as dyes, agricultural chemicals, and pharmaceuticals enter waterways all around the world, they can harm the environment and human health. Removing them can be incredibly difficult.
Photocatalysts – substances that absorb energy from light and use it to accelerate the rate of a chemical reaction – can decompose organic pollutants in a process called mineralisation. This process converts them into water, carbon dioxide, and other harmless molecules.
But there’s a catch: Most photocatalysts require UV light to work, making them impractical and expensive to use at scale.
To solve that problem, researchers have their sights set on finding a photocatalyst that can harness much more of the solar spectrum.
“If you can use solar light, it’s cheaper and much more available than UV light,” Magnus Rønning says.
He is a professor in catalysis at the Department of Chemical Engineering at NTNU.
Gold nanoparticles are the key

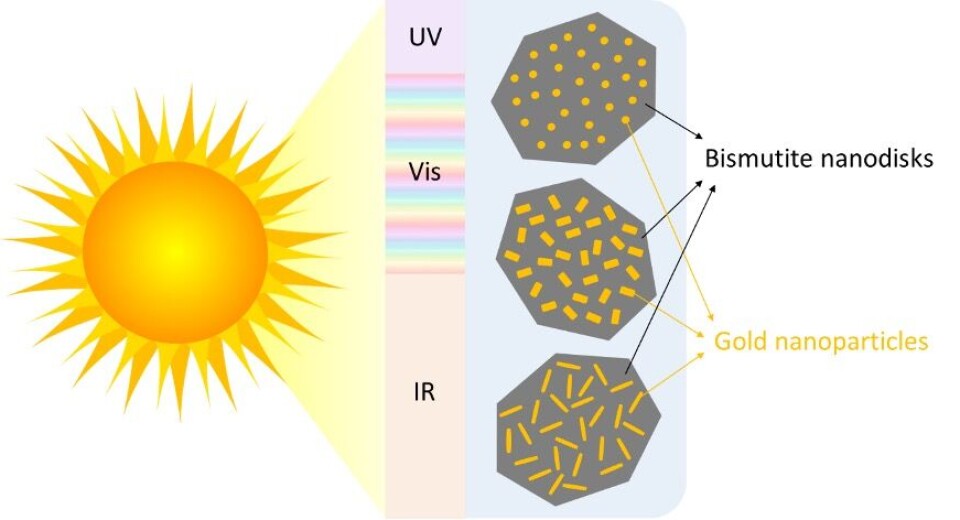

Nano-sized disks made of the mineral bismutite are a promising photocatalyst. Researchers have discovered that adding gold nanoparticles to their surface increases their sensitivity to the visible part of the solar spectrum.
However, while there are several ways to deposit those gold nanoparticles on a surface, most methods give limited control over the size and shape of the particles you end up with.
“Often, you will get a distribution of sizes and shapes [that] you cannot really control, so you have a mix of rods and spheres and cubes,” Rønning says.
Rønning and colleagues at NTNU have now found a way to create gold nanoparticles with a uniform size and shape on the surface of the bismutite nanodisks.
Their research opens up the possibility of studying the effect of both the size and shape of the nanoparticles on the performance of the catalyst, in turn making it possible to maximise its light-harvesting capacity.
Tested different shaped nanoparticles
The researchers used small gold seeds as nucleation sites on which they grew gold nanoparticles in different shapes – rods, etched rods with roughened surfaces, and spheres – by adjusting the concentration and pH of the solution the particles were growing in.
These nanoparticles have a surfactant layer on their surface, which reduces the likelihood they will clump together, before they are deposited on the bismutite nanodisks.
“With this, we can keep a reasonably good control over the size and shape of these particles,” Rønning says.
The samples were prepared and characterised by PhD candidate Jibin Antony in NTNU’s NanoLab, with the catalytic reactions themselves run in the labs of the Catalysis Group in the Department of Chemical Engineering.
Promising tests
The researchers tested how well the resulting photocatalyst could break down an organic pollutant known as methylene blue. As well as being a widespread organic contaminant in its own right, methylene blue is a useful test case for how well a photocatalyst will work on other pollutants.
“It’s quite representative as an organic contaminant, but it’s also a relatively complex molecule,” says Rønning. “If it works on methylene blue, it should also work well on other organics.”
The other advantage of using methylene blue is that its decomposition is already well understood, allowing the researchers to probe not just how much methylene blue is left at the end of the process, but also what it’s been converted to.
While that is not something that Rønning and colleagues looked at in their work on gold nanoparticles, in a related paper the researchers saw that adding silica to bismutite nanodisks did change the degradation products of methylene blue.
“In the end, you want full mineralisation and not just conversion into something that is just as dangerous or unwanted as the methylene blue,” Rønning says.
Rods are better than spheres
Rønning and his colleagues found that the photocatalyst with rod-shaped gold nanoparticles performed 14 per cent better than the one with spheres. But there is still room for improvement.
“Even after three hours of reaction, you still have some of the contaminant left. So, yes, it’s working. But we still need something that works better," Rønning says.
Some photocatalysts are already used in wastewater treatment and air purification systems commercially. The technology also holds promise for hydrogen splitting – producing cheap hydrogen fuel using just water and sunlight.
However, to make that possible, researchers need to find a way to make the catalysts much more effective than they are today.
The key improvement needed for better photocatalysts rests on how many of the photons are actually used to drive the reaction.
“In good cases, it’s maybe one per cent,” Rønning says. “If we can get this up to, say 10 per cent, it will be much closer to practical applications.”
While changing the size and shape of gold nanoparticles is unlikely to bring about such a huge increase in efficiency, it’s a start.
“We need to improve the catalyst in order for this to be commercially viable. This is a step in that direction,” Rønning says.
Reference:
Antony et al. Optimizing the shape anisotropy of gold nanoparticles for enhanced light harvesting and photocatalytic applications, Photochemical & Photobiological Sciences, vol. 22, 2022. DOI: 10.1007/s43630-022-00351-8
Antony et al. Silica-modified bismutite nanoparticles for enhanced adsorption and faster solar photocatalytic degradation of methylene blue, Catalysis Today, 2023. DOI: 10.1016/j.cattod.2022.12.017
