Blue whales are the largest animal on Earth, but their population was decimated by commercial whaling during the last century. Researchers don't know the current global population size, but they believe it is between 5,000-15,000 mature individuals, which is just 3-11 per cent of the population size in the early 1920s.

Eavesdropping on whales in the high Arctic

The Earth’s oceans are crisscrossed with roughly 1.2 million km of fibre optic telecommunication cables — enough to girdle the planet 30 times. Researchers have now succeeded in using fibre in a submarine cable as a passive listening system, enabling them to listen to and monitor whales.

Journalist
Presented by: NTNU - Norwegian University of Science and Technology
Published

Whales are huge, but they live in an even larger environment — the world’s oceans. Researchers use a range of tools to study their whereabouts, including satellite tracking, aerial surveys, sightings and deploying individual hydrophones to listen for their calls.

But now, for the first time ever, researchers have succeeded in passively listening to whales — essentially, eavesdropping on them — using existing underwater fibre optic cables.

The technique, called Distributed Acoustic Sensing (DAS), uses an instrument called an interrogator to tap into a fibre optic system, turning unused, extra fibres in the cable into a long virtual array of hydrophones. The research was conducted in the Svalbard archipelago, in an area called Isfjorden, where baleen whales, such as blue whales, are known to forage during the summer.

“I think this can change the field of marine bioacoustics,” said Léa Bouffaut, the first author of a paper just published in Frontiers in Marine Sciences. Bouffaut was a postdoc at NTNU when she worked on this research and is now at the K. Lisa Yang Center for Conservation Bioacoustics at Cornell University, where she continues expanding this work.

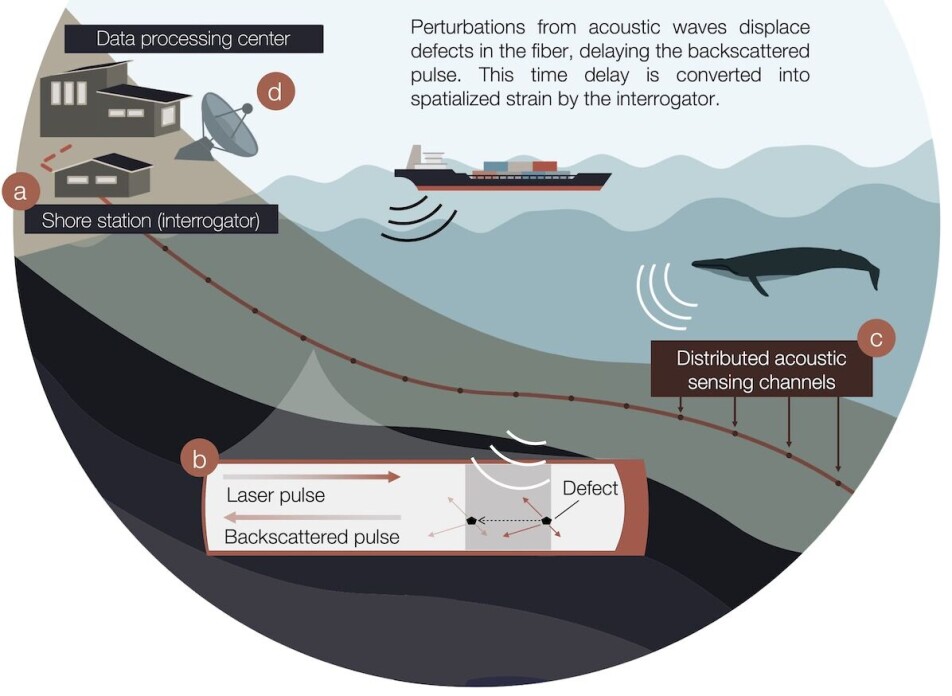

This schematic shows how DAS works. A laser pulse is sent from the shore station through a fibre optic cable by an interrogator (a). The fibre has tiny impurities in it, called defects (b). Underwater sounds cause the defects in the fibre to be slightly displaced, which delays the backscatter a signal back to the interrogator, which then interprets the time delay as a strain on the fibre. That in turn can be interpreted as acoustic data, recorded physically at regularly spaced intervals, called channels.

Fibre optic cables are everywhere

Bouffaut said the beauty of the system is that it could allow researchers to take advantage of an existing, worldwide network.

“Deploying hydrophones is extremely expensive. But fibre optic cables are all around the world, and are accessible,” she said. “This could be much like how satellite imagery coverage of the Earth has allowed scientists from many different fields to do many different types of studies of the Earth. To me, this system could become like satellites in the ocean.”

Bouffaut said that other types of whale monitoring that rely on sound often only provide single or a few points of location information from a hydrophone. Point locations provide limited coverage of an area, and of course aren’t evenly spread across all oceans, which can make it challenging for researchers to study migratory routes, for example.

In contrast, DAS not only allows researchers to detect whale vocalisations, they can use the fibre network to locate where the whales are in both space and time, with an unprecedented spatial resolution, she said.

“With this system, which is what we can basically call a hydrophone array, we have the chance to cover a much bigger area for monitoring. And because we receive the sound at multiple angles, we can even say where the animal was — the position of the animal. And that’s a huge advantage. And if we take it even further, which still requires some extra work, this could happen in real time, which would really be a game changer for acoustic monitoring of whales,” said her colleague Hannah Joy Kriesell, one of the paper’s co-authors.

Aerial view of a blue whale.

Can hear boats, earthquakes

The technology also allows researchers to ‘hear’ other sounds carried through the water, from large tropical storms to earthquakes to ships passing by, said Martin Landrø, an NTNU geophysicist who was a co-author of the paper. Landrø is also head of the Centre for Geophysical Forecasting, a Centre for Research-based Innovation funded by the Research Council of Norway.

“If anything is moving close to or making an acoustic noise close to that fibre, which is buried in the seabed, we can measure that,” he said. “So what we saw was a lot of ship traffic, of course, a lot of earthquakes, and we could also detect distant storms. And last but not least, whales. We detected at least 830 whale vocalisations altogether.”

Landrø said that detecting distant storms was possible because of the low frequency seismic signals that are generated by the waves from big storms. This method of detecting large storms from low-frequency waves at great distances was established by the oceanographer Walter Munk in 1963, when he measured waves from Antarctic storms on the Pacific Island of Samoa.

“We were able to see storms that occurred in the South Atlantic 13,000 kilometres away on the low frequency part of the data, and we could determine the distance to the storm,” he said. “We detected at least four or five different large storms that occurred and we could go back to the meteorological data and identify them by name.”

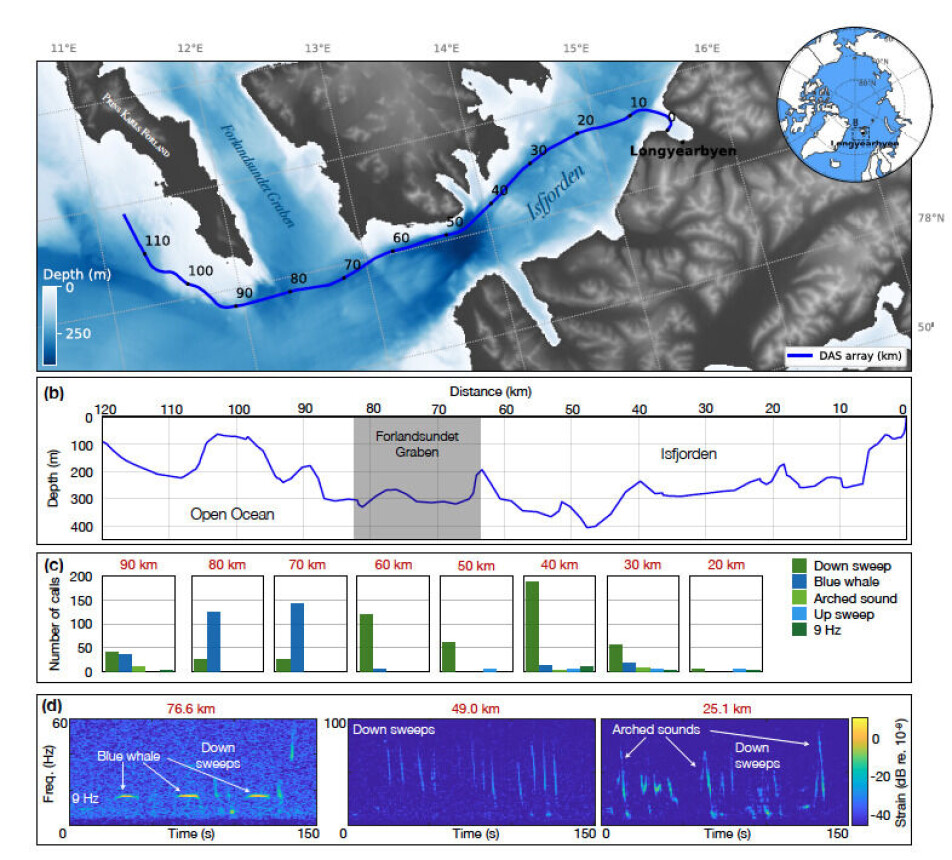

This image shows where the whale vocalisations were recorded and what they looked like on a spectrogram, a graphic representation of the sounds. See below for the actual sounds.

COVID-19 and a trip to Svalbard

The researchers worked with Sikt, the Norwegian Agency for Shared Services in Education and Research, which provided access to 250 km of fibre optic cable in Svalbard, buried on the seabed between the archipelago’s main town, Longyearbyen, and Ny-Ålesund, a research settlement on a peninsula to the northwest. The cable goes from a sheltered fjord, called Isfjorden, and out into the open ocean, where 120 km of the cable was used as a hydrophonic array.

The research group also included Alcatel Submarine Networks Norway, which provided the interrogators — the instruments that allowed the group to tap into the Sikt fibre optic cable.

Two researchers travelled to Longyearbyen in June 2020, at the beginning of the COVID-19 pandemic, and were able to use the interrogator for 40 days, listening along the length of the 120 km long cable.

“The fibre cable between Longyearbyen and Ny-Ålesund, which was put in production in 2015 after 5 years of planning and prework and mainly funded by our ministry, was intended to serve the research community and the geodetic station in Ny Ålesund with high and resilient communication capacity,” said Olaf Schjelderup, head of Sikt’s national R&E network and another paper co-author. “The DAS sensing and whale observation experiment shows a completely new use of this kind of fibre optic infrastructure, resulting in excellent, unique science.”

Schjelderup noted that another advantage of the experiment was the high-capacity data communication capacity provided by the Norwegian R&E Network, (named Uninett), which allowed near real-time streaming of the raw data from the DAS sensing unit in Longyearbyen all the way to Trondheim.

“The researchers could, from Trondheim, almost instantly, start studying the signal recordings from the sea outside Svalbard. This is a very good example of a paradigm shift in distributed data collection,” he said. “What has been done at Svalbard here paves the way for rolling out more of these kinds of fibre optic sensors as permanent infrastructure — collecting and processing data from different geographies and locations in near real time — both for research and different operational purposes.”

A blue whale that was killed as a result of a ship strike.

7 terabytes per day

Bouffaut and Kriesell, a researcher at NTNU’s Department of Electronic Systems, worked on analysing the 40 days of round-the-clock data from the experiment. “In total they had to analyse 7 terabytes per day, or roughly 250 terabytes of data for the entire period. They started by looking at signals from locations on the fibre that were 10 km apart, which made it manageable,” Bouffaut said.

The challenge, in addition to the amount of data involved, was that “we’re looking for signals without knowing exactly what to expect. This is new technology and a new type of data that no one has looked at for finding whales,” Bouffaut said.

The work was painstaking, but “it was very, super exciting, especially when we started seeing whale signals,” Bouffaut said. “But I get this question a lot, even from bioacousticians: how do you know this is a whale? And I say, ‘how do you know it’s a whale when you’ve recorded from a hydrophone? We recognised the frequency, the pattern, the repetition, and we listened to it.’”

Bouffaut added that now that the researchers know the data better, they could train machine learning models to simplify and automatise the data analysis process.

Bouffaut and Kriesell identified what are called stereotyped calls for North Atlantic blue whales outside of Isfjorden. These kinds of calls are associated with male vocalisations. They also saw what are called D-calls, which are vocalisations in which the sound sweeps down, and can be made by males, females and calves. They detected these calls inside the sheltered waters of the fjord. Previous researchers have linked D-calls with foraging or social contexts, the researchers said.

Ship traffic in the waters off of the Svalbard archipelago and south to Bear Island is on the increase, especially as the area contains prime fishing grounds.

What the whales sound like

Below is a sampling of some of the calls. The calls have been sped up by a factor of 3.5 so that they are audible to human ears:

  • This first audio below contains two whales, which you can hear if you wear headphones to listen. The first whale is most likely a North Atlantic blue whale producing a stereotyped sound and D-calls; whale 2 is a short down-sweep, potentially a fin whale:
  • This second audio below is series of non-stereotyped arched sounds and down-sweeps, likely from a North Atlantic blue whale and shown in the graphic above at (d) at 25.1 km:
  • This third audio below is a series of down-sweeps (species unknown; likely fin whales) and shown on the graphic above at (d) at 49.0 km:
  • This fourth audio below is series of North Atlantic blue whale stereotyped calls and down sweeps. It is shown on the graphic above at (d) at 76.6 km:
  • This call is from a North Atlantic blue whale that was producing both stereotyped calls and D-calls:

The changing Arctic

Bouffaut said the value of this kind of system was especially clear in the Arctic, where warming from climate change is happening two to three times more quickly than average.

“The Arctic is changing very fast. And both animal and human use of the area is changing as fast as the ice melts,” Bouffaut said.

Whales such as blue whales aren’t year-round users of the region yet, but as the ice melts, this could change, she noted.

At the same time, the disappearing ice cover opens the Arctic to increased shipping, fishing and other activities, such as tourism.

“So if whales are changing their uses of this area, and maybe using this area for more than for foraging or for activities where they’re very vulnerable, then having this type of technology can help us monitor these changes,” Bouffaut said.

It is possible to see whales when they come to the surface to breathe, but sound is acknowledged as the best way to study whales because they’re otherwise very elusive

“So by studying their sound production, their calls and their vocalisations, we can learn a lot about them. We can learn where they are during different seasons, and how and where they migrate to. So we get a lot of information by eavesdropping on them,” Kriesell said.

And if DAS can be set up so that the information can be analysed in real time, the information could be relayed to ships travelling in waters where whales are feeding or socialising, and inform stakeholders for direct conservation action, Bouffaut said.

“We could potentially reduce the risk of ship strikes with whales. That would be a very big deal,” Kriesell added. “Arctic ice is melting, and ship traffic has drastically increased in the Arctic. And that’s a problem for the animals. So if we have a means to inform ships about the location of whales in real time, we could stop or at least reduce the risk for ship strikes.”

Reference:

Léa Bouffaut et.al. Eavesdropping at the speed of light: distributed acoustic sensing of baleen whales in the Arctic. Frontiers in Marine Science, 2022.
