Together with partners from the private and public sector NGI has investigated the causes of damage due to groundworks. Billions can be saved by using the new, improved methods and tools developed in the project.

Avoid cracked walls with new construction tools

Billions to be saved using methods and tools that reduce settlement damage, according to research.

'Bjørvika sinking faster than expected'

'Demands 11 million in compensation after Barcode damage to Oslo S'

'Believe Follobanen is the cause of settlement damage'

Newspaper headlines clearly reveal how groundworks can inflict heavy burdens and extra costs on individuals, companies and society.

"It is estimated that in the Norwegian construction industry alone, damage due to groundworks is costing NOK 13 billion every year", says Jenny Langford.

She is a senior specialist at the Norwegian Geotechnical Institute, (NGI), and project manager for the research and development project BegrensSkade - which translates to 'limit damage'.

"The industry's use of new methods and tools to assess risk is important both for the builders and for society", says Arne Engen, senior engineer in geotechnics for Norconsult and chairman of the board for the BegrensSkade-project.

It all started in Oslo's new port district

Bjørvika is the name of the port district in Oslo, located on the waterfront of the Oslo fjord, which has been revitalized and urbanized over the past two decades. Bjørvika today houses Oslo's opera house, Oslo's main library which opened recently, the new Munch museum which will open in the spring of next year, as well as a number of residential and office buildings.

After the Bjørvika development in 2012, NGI initiated a research project to gather knowledge and improve methods for establishing construction pits and building foundations. Together with partners from the private and public sector and with funding from the Research Council of Norway, NGI investigated the causes of damage.

Researchers developed and documented methods for limiting damage, developed tools for risk assessment and studied how those involved in a construction project could better work together.

"Project history, collected initially from a significant number of cases, gave the project standing and means that the causes and consequences identified in BegrensSkade are well justified", says Frode Oset, chief engineer at the Norwegian Public Roads Administration, one of the business partners in the project.

"The results were so good that the Research Council more than doubled funding for the follow-up, BegrensSkade II", says Langford.

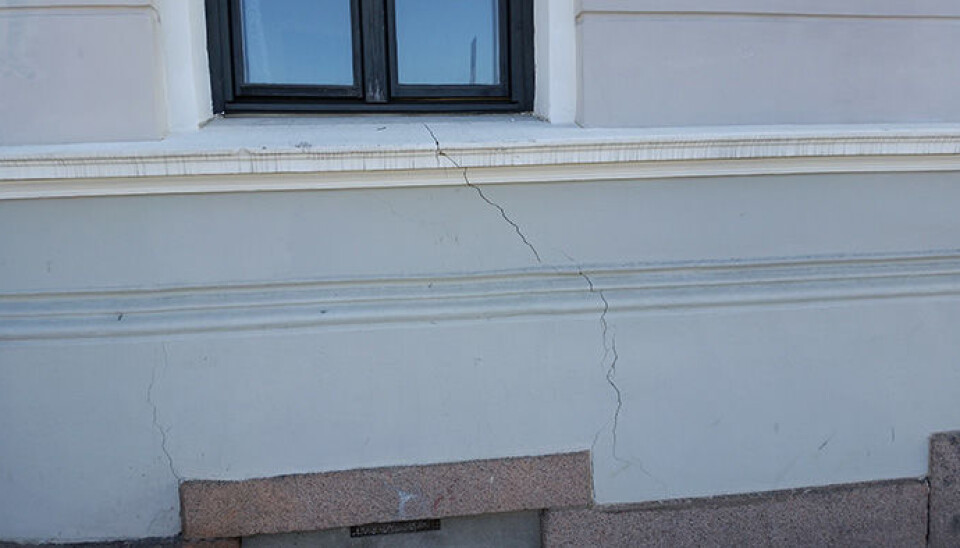

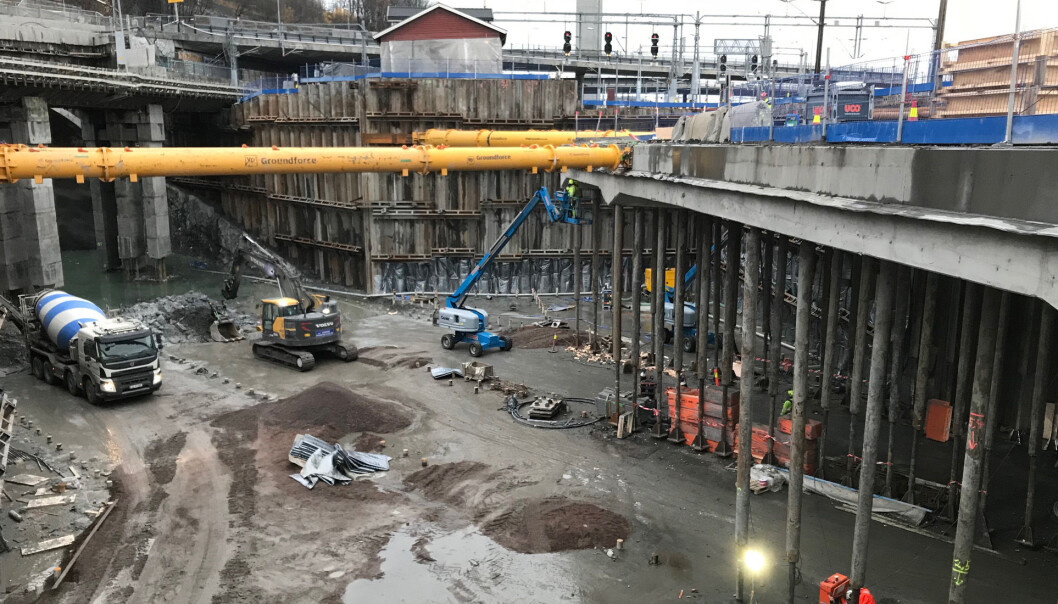

Buildings quite far away from a construction project can be prone to settlement damage. The damage may become evident years after the construction work is finalized.

Great leap for the industry

Oset says that the Norwegian Public Roads Administration, which has several constructions in the area affected by the Bjørvika development, was quick to sign up for BegrensSkade.

"We have seen that there may be challenges associated with construction pits in densely populated areas. NGI's initiative covered a need we had for a great leap forward. In sum, the project has met our expectations, both in terms of improving equipment and procedures for milder drilling."

Among the results, Oset highlights "Byggegropveiledningen", which translates as The Construction Pit Guide.

"This work was led by NGI. Here, problems are described and what should be investigated to prevent damage and ensure robust solutions and good implementation. This guide will have the same status as the Piling Guide and become a reference for good practice", Oset believes.

Risk assessment at the touch of a button

Today, private individuals who experience that construction projects inflict settlement damage on their homes must prove the cause themselves. This damage may only become evident many years after construction work has been completed, making it difficult to prove a causal connection.

"With the tools that we are now developing in BegrensSkade, it will be possible to a greater extent than today, to identify risk in advance of building development and choose construction methods and measures that result in avoiding damage", says Langford.

NGI has developed a model that surveys the vulnerability of buildings in connection with a construction project. It shows that buildings as far away as 2-300 meters can be prone to damage.

The tool is based on geographic information systems, GIS. Available information on ground conditions and buildings and whether the buildings are piled or founded on uncompacted materials is all plotted into the map data.

At the touch of a button, it is thereby possible to assess settlements for corner points on buildings and map the risk of damage as a result of the construction work and, using a colour code, classify the degree of danger.

Thus, it is possible early in the process to assess the risk for existing buildings and the need for milder methods and measures, as well as additional costs involved.

"We have tested the tool on two projects where we have data on how the settlements developed in retrospect. The results show that the model hits well", says Langford.

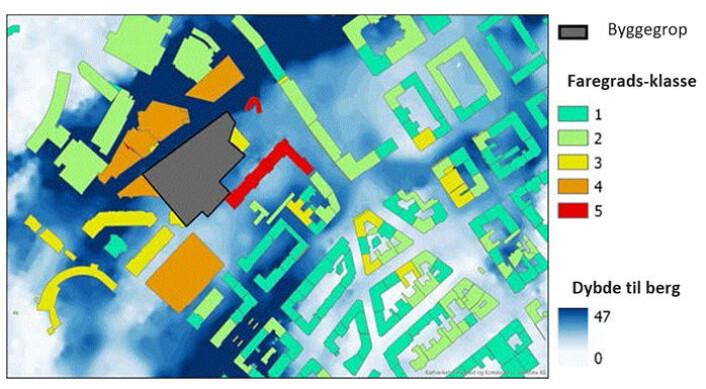

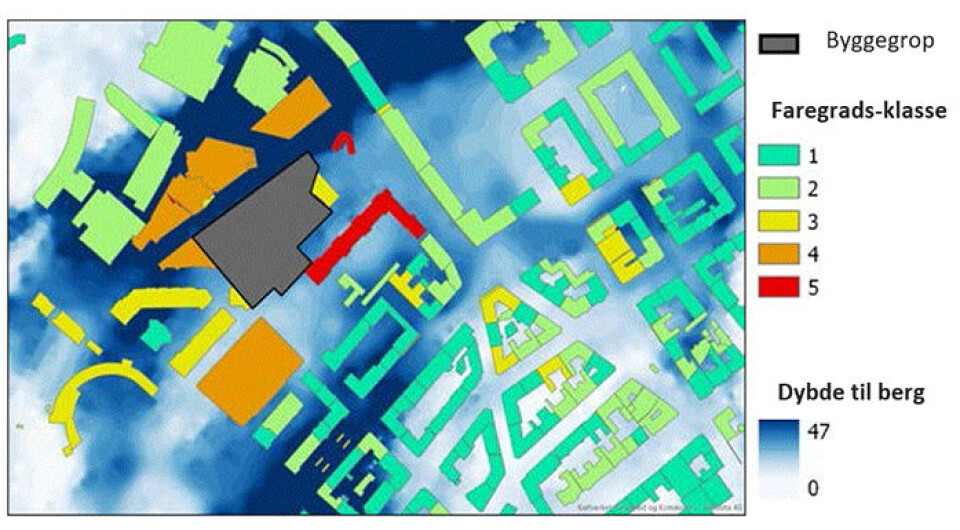

This mapping tool, developed by NGI, shows the vulnerability of buildings in connection with a construction project. The grey area is a construction pit, and the colours grade the danger - red being in the most danger of settlement damage.

Safeguarding the Viking Ship museum

If everything goes according to plan, the model for assessing risk will also be tested in the area around Follobanen, a high-speed railway between Oslo and the suburb Ski. In addition, matrix tools have been developed for a detailed risk assessment of the project and what measures should be taken.

In connection with the planning of a new Viking Museum on Bygdøy, Statsbygg, together with Multiconsult and NGI, has used the matrix tool to assess the risk of exceeding vibration to safeguard the museum exhibits during the building phase.

"There is no tradition for systematic risk assessment in the construction industry. Here, a cultural change is called for, and the example above shows that the industry is changing", Langford believes.

From research to practice

Oset and Engen support Langford in the need for a cultural change in the industry.

"Yes, there is a need for new thinking, for example about how we formulate the contracts. Maybe the work should be measured in time and not in meters. It must pay to use the methods that are mildest", says Engen at Norconsult.

"The key people who currently prepare the contract grounds for large state-owned companies, such as Bane NOR and the Norwegian Public Roads Administration, must be presented with the tools, methods and recommendations in BegrensSkade and use them. Internally, we must work to ensure that those who make contracts for risk projects are aware that there are tools that supplement what is currently in use, and get them included in the work routines", says Oset.

Spreading the word

Both at NGI and with business partners, attention is now focused on informing and teaching the industry how it is possible to avoid settlement damage.

"We plan to conduct a course for the entire industry in risk management, where we will, among other things, present the tools that BegrensSkade has developed", says Langford.

She says that all the tools developed in the project will be available on NGI's project page. In addition, NGI is working on a website that will make the GIS tool available for the entire industry.

"The job is not completed when we have identified tools and finished writing the final report. We must increase our understanding of what kind of damage potential the construction methods we choose can have. The best way to make money is to do things right from the start", says Oset.

"We will be involved in pushing geotechnics forward as a discipline. The strength of BegrensSkade is that a collective professional environment is behind it. Now we need to spread the results", says Engen.
