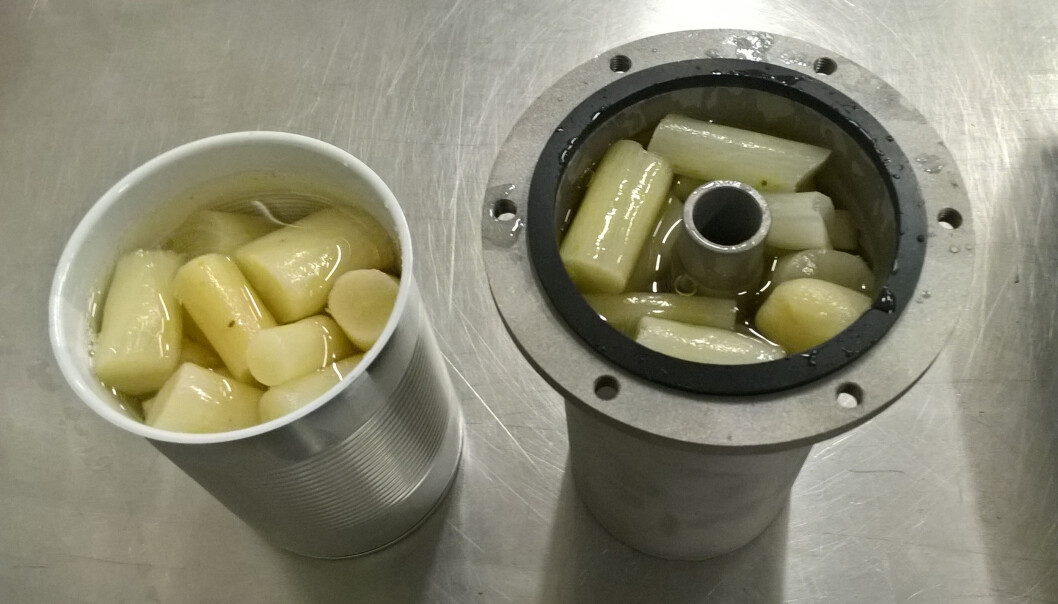

The food inside the toroid can heated up faster than in the regular can, and even more when it was rotating while heating.
The food inside the toroid can heated up faster than in the regular can, and even more when it was rotating while heating.

A hole in the can may provide better canned food

Canning is a sustainable way of storing food, but the method requires a lot of energy and water and can affect food quality. A newly developed can with a different shape may be the solution that makes canned food of the future more attractive.

Published

The can looks like a regular can with a hole in the centre, and still only exists as a prototype in the laboratories of European food scientists.

The new shape means it can be heated from both the outside and the inside, it provides a better quality of food and the process uses less energy.

Therefore, manufacturers will be able to save both time and electricity costs and sell a better product to consumers.

Hermetically sealed innovations

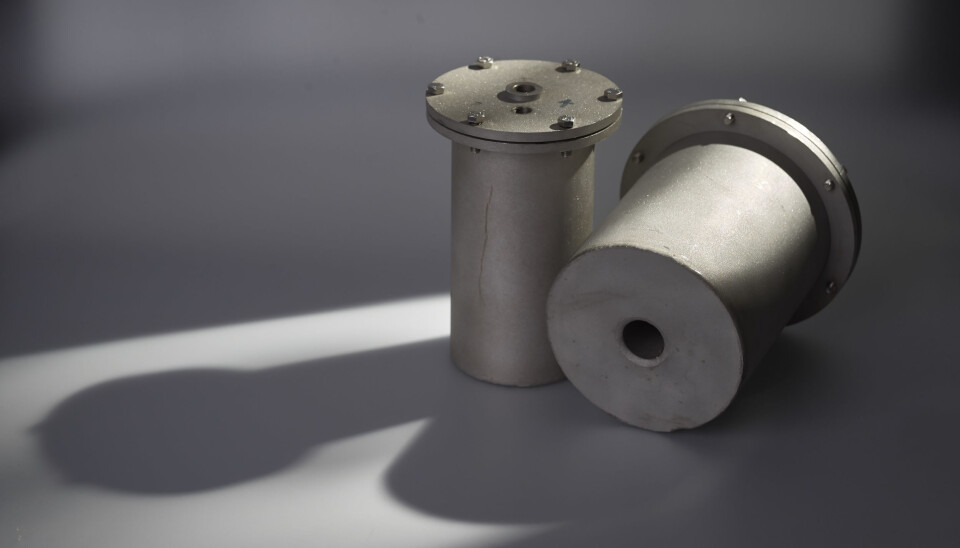

Prototypes of cans with a hole in the middle are now being tested in several European research institutes.
Prototypes of cans with a hole in the middle are now being tested in several European research institutes.

The hermetically sealed metal can was revolutionary when it arrived in the early 1800s.

More often than not, hermetically sealed food is associated with the traditional, round metal can, but development hasn’t stood still. One can now find hermetically sealed food in both cardboard, plastic and glass packaging. Sauerkraut pouches, mackerel in tomato sauce and cardboard cartons of beans and lentils are all hermetically sealed.

However, senior scientist Dagbjørn Skipnes in Nofima says that the metal can is still relevant.

“The hermetically sealed can is old technology, but it is very environmentally friendly. The metal is 100% recyclable, in contrast to many of the alternatives”, says Skipnes.

In order to kill all the bacteria, the metal cans are heated in a pressure cooker (autoclave) before being sent out to the shops. All types of food are affected when exposed to high temperatures. One of the challenges regarding the round metal cans is that it takes some time before the food in the core of the can reaches a temperature high enough to guarantee food safety. This is because the heat penetrates from the outside and moves inward toward the coldest area. The food that is located at the outermost parts of the can is exposed to heat loads for longer periods than it actually needs. Therefore, quality loss can occur, or the product may even get burned.

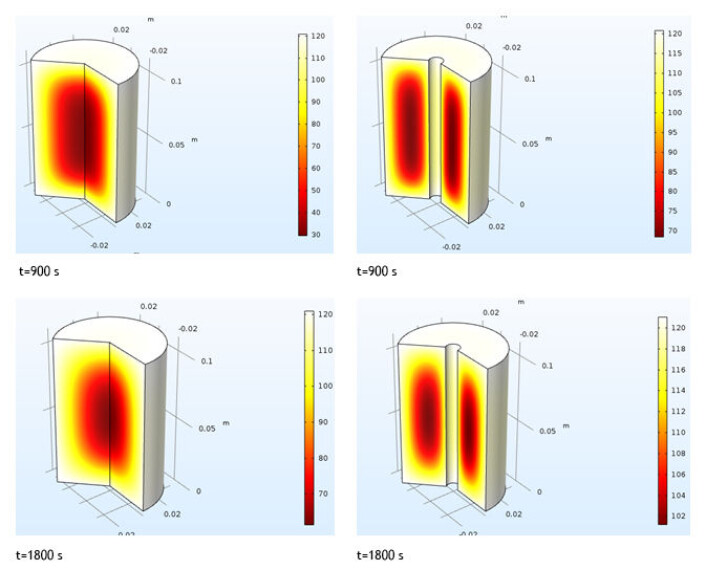

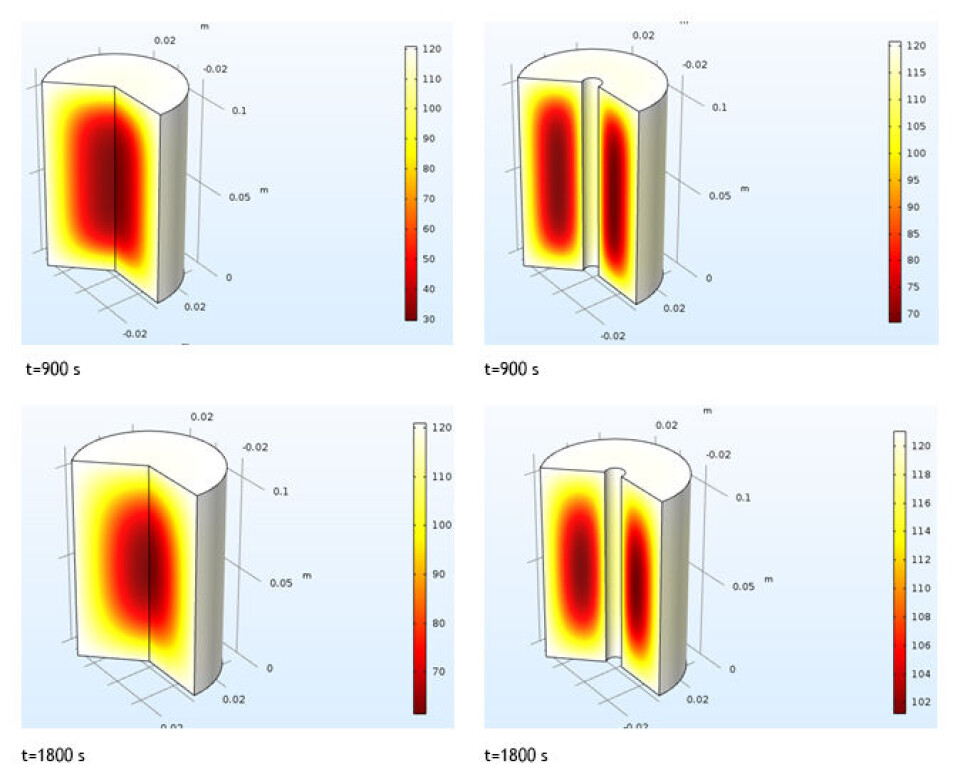

Temperature distribution to compare conventional and toroidal cans.
Temperature distribution to compare conventional and toroidal cans.

Scientists are trying to do something about this. In a European research project, they are investigating a totally new hermetically sealed can concept.

The idea first came from Turkish scientists: What if we could heat the food not only from the outside of the can, but also from the inside?

The scientists started working on mathematical models and simulations of heat transfer rates in a can with a hole in the middle. How would the heat spread in the can when it comes from both the outside and from the middle? The mathematical form is called torus, and cylinders of this shape are called toroids – hence the name toroid cans, which scientists have called the newly developed can. The simulations were promising, and the scientists developed prototypes to undergo trials with different types of food.

Facts about hermetically sealed food

  • Canned food is food is sealed (completely airtight) and then heated to 110-120 °C so that all bacteria in the food are killed. This ensures that the food has a very long shelf life. The expiry date guarantees the quality of the product, but the food is not dangerous to eat after the expiry date. In that respect, hermetically sealed food can keep almost indefinitely.
  • In order to retain the highest food quality, it must be heated as little as possible, for as short a time as possible. Therefore, hermetically sealed cans are cooled as soon as all the bacteria are killed. The challenge regarding hermetically sealed cans is that parts of the food are exposed to high temperatures for a little too long.
  • When food is hermetically sealed, the cans are placed into a pressure cooker (autoclave) where they are heated with hot steam and/or superheated water. The heat penetrates the can from the outside and towards the centre. When the core temperature of the can is high enough for a sufficiently long time, the canning process is finished.

The advantages of a hole in the middle

The first prototype was custom-made for pineapple rings and was tested at Mersin University under the direction of Professor Ferruh Erdogdu, Turkey, with promising results, and improvements were tested at Ankara University.

This year, the can has undergone further testing in Ankara and also by food scientists in Belgium. Scientist Bart van Droogenbroeck at the Belgian research institute ILVO developed new toroid can prototypes in several sizes, and has conducted experiments including potatoes, black salsify, tomato based mushroom sauce and tomato soup with vegetables. During the experiments, the prototypes were tested alongside regular cans in order to compare the results.

Not only were the cans tested while standing still inside the autoclave. They were later also tested while rotating end-over-end inside the autoclave during the heat treatment.

“The toroid cans produced the best results when used to contain purées, sauces and soups. These were heated up much quicker, almost twice as fast”, says Van Droogenbroeck.

There was less of a difference regarding the samples of canned vegetable chunks. The new can still heated up faster, but not as much. Studies on food quality are now taking place.

“Common to all products was that the colour and appearance of the food in the toroid cans improved. The effect also depends on the recipe of the food product in the can”, says Van Droogenbroeck.

As expected, the movement of the can in the end-over-end mode further improved the speed of the heat transfer, resulting in a shorter processing time.

Shaking is next in line

Next year, Nofima in Norway will pick up the baton. There, the new cans will be tested in a pressure cooker where the cans are shaken at the same time as they are heated up. This is to see if the heating time can be further reduced and preserve as much quality as possible of the food product.

In a previous research project, researchers determined the optimal shaking rate for regular cans. Now the objective is to calculate an optimal shaking rate for toroid cans.

“Through international cooperation, we can share perspectives and experience, and benefit from each other’s skills and equipment. In this way, we can conduct investigations that we wouldn’t have been able to manage on our own”, says Skipnes.

The scientists from Turkey, Belgium and Norway are collaborating with Swedish and Spanish scientists in the EU-funded research project called InProVe, where the goal is to contribute to a more sustainable utilisation of raw materials in the potato and vegetable industry.

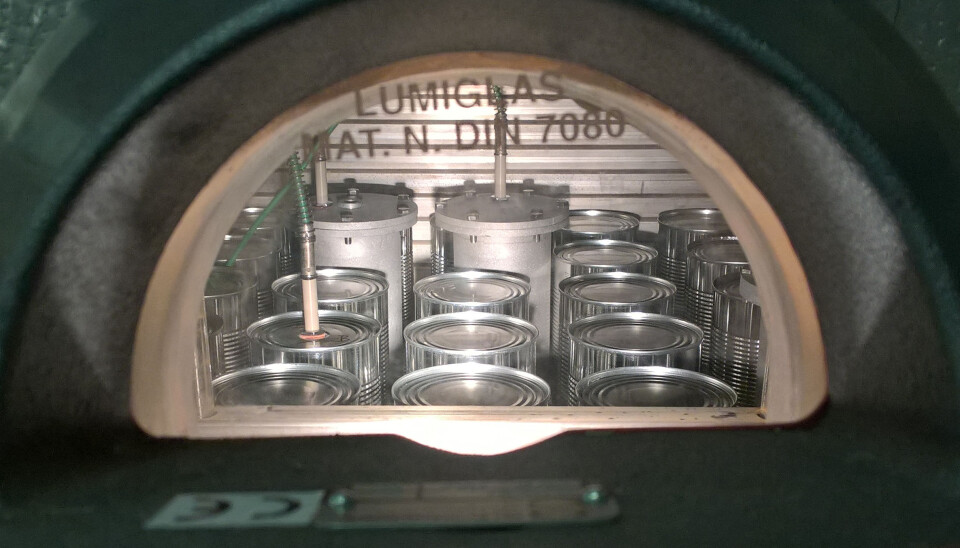

The prototypes were tested in an autoclave together with regular cans.
The prototypes were tested in an autoclave together with regular cans.

“The sale of canned food on a worldwide basis is still huge. If we can get even more taste and nourishment in this food with the toroid can, it will be a great step forward for both the food industry and consumers”, says Skipnes.

The hermetically sealed can of the future?

Currently, the technology isn’t available for food manufacturers because can manufacturers still don’t have the equipment to make the cans with a hole in the middle.

“There are still some challenges remaining regarding sealing the cans. In addition, we still don’t have an overview of how the manufacturing of the toroid cans, including extra metal needed, will affect costs. Sealing the cans in an industrial process line will be another challenge”, says Ferruh Erdogdu, professor at Ankara University.

There is also the question of whether it is going to be made in metal at all. A can with a hole in the middle can also be made from other materials. And how can a can like this be filled? Equipment for this has not yet been developed.

“The most interesting thing about this innovation is the geometry, that the can has a hole in the middle. This will be especially useful when it comes to large hermetically sealed cans; those that large households might buy, for example. They will experience a big improvement in the quality of the food they serve”, says Skipnes.

The scientists believe that there is every reason to be optimistic about the future of canning.

“In terms of food safety in a world of explosive population growth, this method of preserving food is absolutely something to pursue”, says Skipnes.

InProVe

  • The InProve Project - Innovative Processing of Vegetables and Potato, is a three-year research project funded by the EU’s ERA-net programme Susfood2, which funds international collaborative projects within the field of research and innovation for sustainable food.
  • InProVe scientists investigate innovative solutions for food processing, especially within the fields of hermetically sealed foods, microwave technology and pulsating electric fields (PEF).
  • The project is coordinated by Nofima, together with the research partners RISE, Sweden, ILVO, Belgium, the University of Mondragon, Spain, CRIFFC, Turkey, Ankara University, Turkey as well as the industrial partners Greenyard, Hoff and Fjordland.

———
